Features

EX765 - Bright Projection
  • PureShift (V&H Shift) & 1.6x Zoom
  • Digital and Analogue connectivity includes: HDMI, DVI-D, dual VGA
  • Bright projection – 4000 ANSI Lumens, Native XGA
  • Networking – RJ45 control and monitoring
The Optoma EX765 is perfect for large room installations. Its high performance combined with a brightness of 4000 ANSI Lumens allow it to achieve crystal clear images from a great distance. The introduction of PureShift technology gives your projector outstanding flexibility and with a 1.6x zoom, makes the EX765 an ideal replacement for existing ceiling mounted systems. The environmentally friendly EX765 has energy saving features including <1W standby mode and auto power off saving you both time and money. Long lamp-life of 4000hrs combined with our unique Optoma Colour and Imager guarantees ensure hassle-free, long-lasting projection.

1.6X Zoom and Pureshift

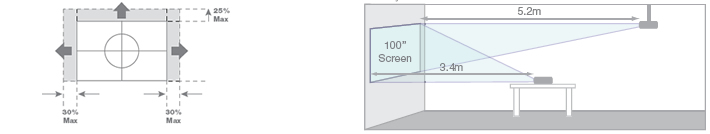

The EX765 can project a 100" diagonal image from any distancebetween 3.3m and 5.4m. The PureShift system provides a lens shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed in the diagrams below.

When replacing existing projectors, the 1.6x zoom and PureShiftsystem will greatly increase your installation flexibility.

Projector Control

The extensive RS232 command set makes it simple and easy to control this projector with any control system


AMX Compatibility – Dynamic Discovery Protocol is incorporated into this projector. This feature allows for easy installation with AMX control systems.

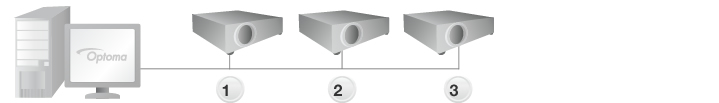

Projector Management

Networking
Projectors can be controlled and monitored over a network (LAN) using a web browser.
  • Manage up to 99 projectors at the same time (via master PC)
  • Control and alter the projector settings using a simple web browser page
  • Instant onscreen display of messages to all projectors
  • Set up email alerts for warning messages
Ideal for large installations in both in the educational and businessenvironments.

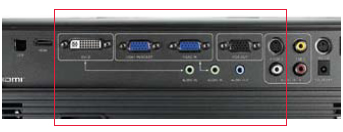

Extensive Connectivity


This native XGA projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, dual VGA–SCART and Component, S-Video, Composite, RS232 and RJ45.
Three audio inputs for individual PC and video connections enablethe EX765 to function as an audio switcher and volume controller,thereby eliminating complicated and costly additional audio hardware and cabling.

Amazing Colour

Optoma guarantees images quality as new for 5 years. To retain image clarity Optoma projectors are designed with DLP technology, preventing degradation over time and content pixel performance. The Imager guarantee ensures a precise performance for a minimum of 5 years.

Optoma guarantees images quality as new for 5 years. To retain image clarity Optoma projectors are designed with DLP technology, preventing degradation over time and content pixel performance. The Imager guarantee ensures a precise performance for a minimum of 5 years.

BrilliantColor™ DLP projectors with BrilliantColor™ technology feature multi colour processing to produce stunning, vibrant colours on the screen. Unlike other technologies such as LCD which use just 3 primary colours to produce the image, DLP technology with BrilliantColor uses six separate colours.


Virtually Maintenance FREE = Lower Total Cost of Ownership (TCO)
DLP® technology ensures lower cost of ownership, longer life and improved reliability compared to other technologies.The filter-free projector design means no more regular filter cleaning or replacements, saving you time and money.

Environmentally Friendly

This projector incorporates energy saving features to reduce power consumption and extend the lamp life.


The timer control functions can automatically switch the projector off to <1W standby mode, conserving power and extending the lamp life to an astonishing 4000hrs**.


It takes less than 10 seconds for the projector to power up and shutdown, saving both time and energy.
*Optoma guarantees that in normal use, Optoma DLP® colour quality will be indistinguishable from when new. Please note that worn lamps will give slight variance. Exclusions: *(1) Guarantee is voided if the projector is subject to damage through mis-use.(2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive (3) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other fault.*** Optoma guarantees that in normal use, the DLP® imager guarantee will retain quality for at least 5 years providing consistent pixel performance. Exclusions: (1) Guarantee is voided if the projector is subject to damage through mis-use. (2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive.**Typical lamp life achieved through testing. Will vary according to operational use and environment conditions. Copyright © 2009, Optoma Europe Ltd. All other product names and company names used herein are for identifications purposes only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.
